Kick Sigelei Steuereinheit VW
1 x Kick von Sigelei
Bei dem Kick handelt es sich um eine Steuereinheit, welche für mechanische Akkuträger genutzt wird. So kann man die Leistung einstellen, welche Am Verdampfer ankommen soll. Um den Kick zu betreiben, wird aus 18650 Akkuträgern häufig ein 18500 oder 18490 Akkuträger.
Auto output KICK von Sigelei variable power program
Part name: KICK variable power
Gewährleistung und Garantie:
2 Jahre gesetzliche Gewährleistung
DOA-Garantie (Funktion bei Eintreffen ) für Verdampfer und andere Verbrauchswaren.
1 x Kick von Sigelei
Bei dem Kick handelt es sich um eine Steuereinheit, welche für mechanische Akkuträger genutzt wird. So kann man die Leistung einstellen, welche Am Verdampfer ankommen soll. Um den Kick zu betreiben, wird aus 18650 Akkuträgern häufig ein 18500 oder 18490 Akkuträger.
Auto output KICK von Sigelei variable power program
Part name: KICK variable power
Size: 18.5mm(Diameter) *17mm (High)
The Kick buy Sigelei main function description
1, Power supply:
1.1 Standard volume :3.7v 1pcs battery.
1.2 Include the Positive and negative of battery’s Reverse connect protection function, Short Circuit protect function, Low output resistance protect function, battery low voltage protect function. It is very convenience to use cooperatively with telescope etc. strengthen it’s function, because this program increase the short circuit protection and low voltage low resistance protective measure, it can increase the telescope etc machine product’s security
1.3 No charge function, it need to take out the battery to charge
2 Kick buy Sigelei Working parameter
2.1. Support 1.5 Ω-3.0 Ωatomizer. Taken on 5w-12w variable power, +/-1W
2.2 Taken on auto scan output function, output can be worked with atomizer connect the electrify , or it can connect the electrify then the output can fit with every telescope etc products.
2.3 static state current: <1000uA
2.4 Smoking current: output <3A, heating coil value of resistance is : 1.5Ω , maximum power current is 4A
2.5 Output type is kick RMS arithmetic output
3 Kick buy Sigelei Basic function
3.1 power on reset: after power on reset, kick will stay in the stand by mode if not connect with the atomizer
3.2 Time limited protection function: The telescope etc button to control the fire up timing while the set of telescope using the unlimited function.
3.3 If smoke after Battery voltage lower than 3.2v. low coltage protection will start, no output if fire up in this time.
4 Kick buy Sigelei Operation and output
4.1 constant power output kick function, it adjust the output power by square VR. Adjust VR can change the output power, the minimum is 5W, in middle position is 7.5w, the large is 10w, the output is the minimum while you adjust VR to the left, and it is the large output when you adjust the VR to the right. VR has relevant mark, user need to adjust the relevant output power between 5w-10w according to their required.
4.2 Taken on low impedance protection function, output resistance will protected less than 1.0 ohm. Short circuit protect function
4.3 Method of application, use a small tool to adjust the VR on the control panel according to your personal favor, the indicator adjust to the left then the minimum power is 5W, to the right side then the largest power is 10 W, adjust in the middle then is 7.5W, a small case is 0.5W. Put the control panel into the e-cig after adjustment, then turn on the switch start to smoke.

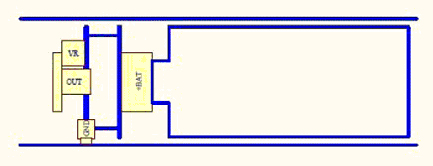

5 Kick buy Sigelei PCB diagrammatic drawing
5.1 This program is three wire mode: connection way is below:
5.2 OUT + is output atomizer anode T type copper
5.3 BAT- is negative pole of batter copper needle
5.4 BAT+ is batter anode circle copper
Gewährleistung und Garantie:
2 Jahre gesetzliche Gewährleistung
DOA-Garantie (Funktion bei Eintreffen ) für Verdampfer und andere Verbrauchswaren.
